Description

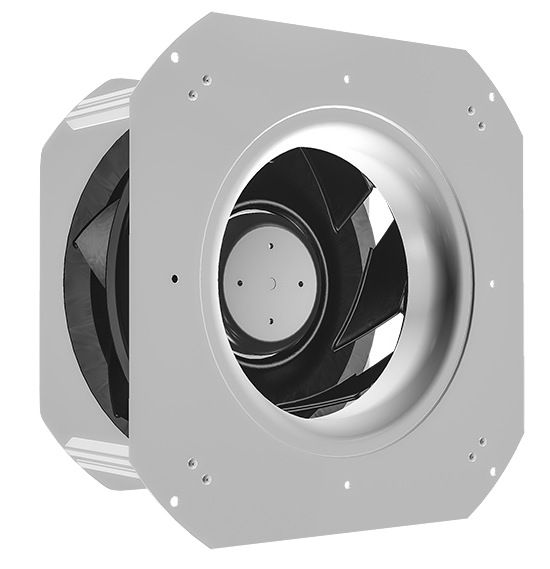

Ecofit RRMuV8 315x88R 230V UL Backward curved centrifugal fans with electronic commutation motor. Airflow 990 CFM @ 1.44 WC; 1941 CFM @ free air.
S15-A1
Additional information
| Brand | Ecofit |
|---|---|
| CFM | 1941 |
| Fan Type Label | Backward Curved |
| Frequency | 60 |
| Motor Type | EC |
| Phase | 1 |
| Size Diameter | 315 |
| Size mm | 315 |
| Voltage | 230 |
Related products
| Item | Brand | Fan Type | Motor Type | Special Class | Size | Voltage | Phase | Freq. (Hz) | CFM* Max. Air | DB A | More | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rosenberg | Backward Curved | AC | – | 355 | 460 | 3 | 60 | 1800 | 75 | > V More | ||
| 355 mm backward curved fan in 500 mm cube-shaped cabinet Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | EC | – | 500 | 230 | 3 | 60 | 6004 | 93 | > V More | ||
| ROSENBERG EC backward curved impeller, GKHM 500-CIB.160.6NA IE GEN3+, input voltage 200-240 volt (4.2 Kw / 1880 RPM max) and 380-480 volt (7 Kw / 2225 RPM max), 3-phase, 50-60 hz. IP54 and UL-R motor class f with status led indicator, open loop (0-10v, pwm, 4-20 ma, modbus, potentiometer), operating temperature -25°C to +40°C at full speed. module construction with aluminum (ALMG3) high efficiency impeller; front plate (dimensions 700 x 700-mm), motor plate, and inlet cone (with plastic tubing). Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | EC | – | 500 | 460 | 3 | 60 | 7500 | 94 | > V More | ||
| 500-mm high-efficiency backward-curved B-Wheel fan module GKHM 500-CIB.160.6IF IE (460-Volt and 200/240-Volt models). ErP 2015 Compliant 3.3 kW motor. Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | EC | – | 355 | 230 | 3 | 60 | 3300 | 94 | > V More | ||
| Rosenberg EC backward curved impeller, GKHM 355-CIB.112.5hF IE Gen3, module construction, input voltage 200-240 volt (1.78 kW & 2520 RPM max) and 380-480 volt (2.49 kW & 2840 RPM max), 3-phase, 50-60 Hz. Ip54 and UL-R motor Class F with status led indicator, open loop only (0-10v, PWM, MODBUS, potentiometer), operating temperature -25°c to +40°c at full speed. High efficiency aluminum impeller, 3300 CFM @ 3.3 inWG Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
