Description

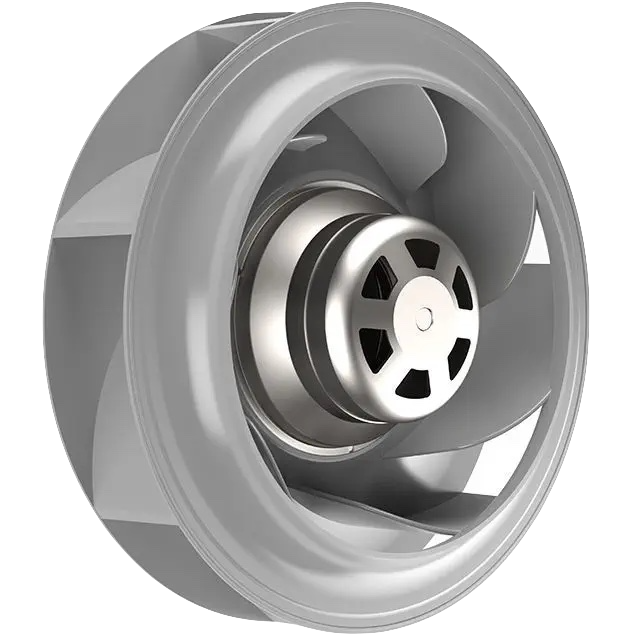

Ecofit RREuV8 280x50R 230V UL Backward curved centrifugal fans with electronic commutation motor. Airflow 696 CFM @ 1.90 WC; 1201 CFM @ free air.
R46-A9
Additional information
| Brand | Ecofit |
|---|---|
| CFM | 1201 |
| Fan Type Label | Backward Curved |
| Frequency | 60 |
| Motor Type | EC |
| Phase | 1 |
| Size Diameter | 280 |
| Size mm | 280 |
| Voltage | 230 |
