Description

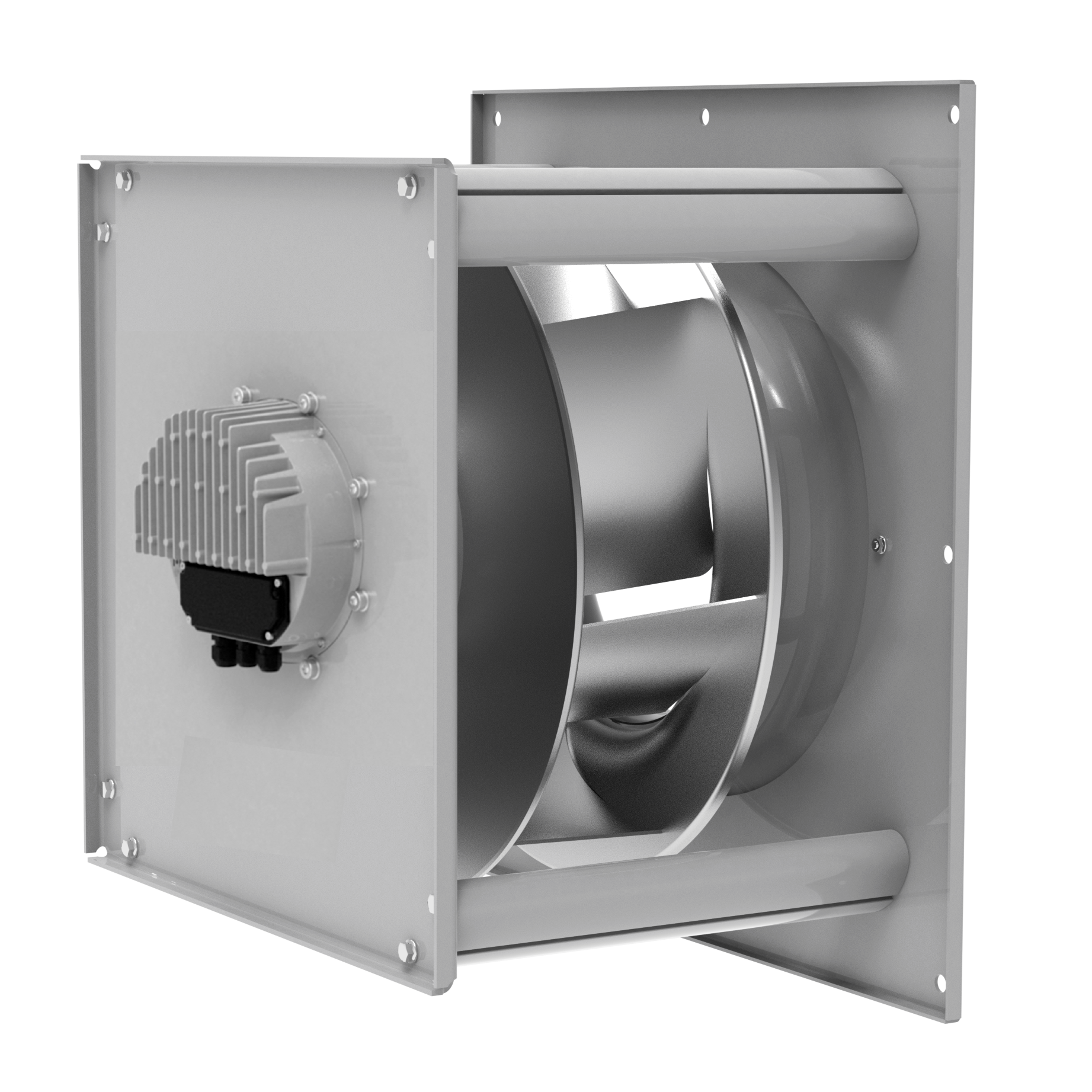

Rosenberg EC backward curved module GKHM 560-CII.183.6NA IE Gen3+_PN N88-56700_460V, 3-Phase, 50-60 Hz. Airflow 8,000 CFM at 4 inches WG. Contact Rosenberg USA for more details.
N88-56700-460
Additional information
| Brand | Rosenberg |
|---|---|
| Fan Type Label | Backward Curved |
| Motor Type | EC |
| Size Diameter | 560 |
| Voltage | 460 |
| Phase | 3 |
| Frequency | 60 |
| CFM | 13000 |
| DB A | 89 |
Related products
| Item | Brand | Fan Type | Motor Type | Special Class | Size | Voltage | Phase | Freq. (Hz) | CFM* Max. Air | DB A | More | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rosenberg | Backward Curved | AC | – | 400 | 230 | 1 | 60 | 2400 | 79 | > V More | ||
| 400 mm backward curved fan in 670 mm cube-shaped cabinet Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | EC | – | 500 | 460 | 3 | 60 | 7500 | 94 | > V More | ||
| 500-mm high-efficiency backward-curved B-Wheel fan module GKHM 500-CIB.160.6IF IE (460-Volt and 200/240-Volt models). ErP 2015 Compliant 3.3 kW motor. Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | AC | – | 710 | 460 | 3 | 60 | 10800 | 86 | > V More | ||
| 710 mm backward curved fan in cube-shaped 1020 mm cabinet Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
| Rosenberg | Backward Curved | EC | – | 355 | 230 | 3 | 60 | 3300 | 94 | > V More | ||
| Rosenberg EC backward curved impeller, GKHM 355-CIB.112.5hF IE Gen3, module construction, input voltage 200-240 volt (1.78 kW & 2520 RPM max) and 380-480 volt (2.49 kW & 2840 RPM max), 3-phase, 50-60 Hz. Ip54 and UL-R motor Class F with status led indicator, open loop only (0-10v, PWM, MODBUS, potentiometer), operating temperature -25°c to +40°c at full speed. High efficiency aluminum impeller, 3300 CFM @ 3.3 inWG Contact Rosenberg USA for more details. | Get More Information: | ||||||||||||
