Description

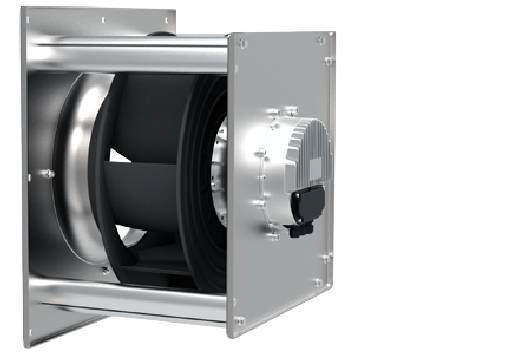

GKHM 315.CIE.088.4FF IE MX; 200-277V, 1-PHASE, 50-60 HZ. ROSENBERG EC BACKWARD CURVED MOTORIZED IMPELLER, MODULE CONSTRUCTION, INCLUDES: IP54 & UL-R EC MOTOR CLASS F WITH SOFT START, NOMINAL 1.06 KW & 2900 RPM MAX, OPEN & CLOSED LOOP SPEED CONTROL (0-10VDC, PWM, MODBUS RTU, POTENTIOMETER), OPERATING TEMPERATURE -25° TO +40°C AT FULL SPEED, SEPARATE POWER & CONTROL CONNECTION CABLES; IMPELLER (BACK PLATE DIAMETER 337-MM, ROSENBERG E-SERIES, 7 BLADES) MADE OF GLASS FIBER REINFORCED POLYPROPELENE
